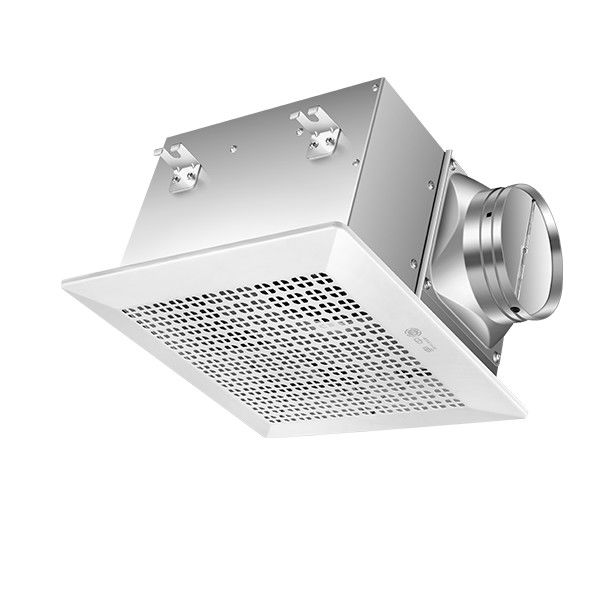

Fresh Air Extraction Fans Single Room Ventilation Systems
Fresh Air Extraction Fans Single Room Ventilation Systems
Fresh Air Extraction Fans Single Room Ventilation Systems
Fresh Air Extraction Fans Single Room Ventilation Systems
Fresh Air Extraction Fans Single Room Ventilation Systems
Fresh Air Extraction Fans Single Room Ventilation Systems

Fresh Air Extraction Fans Single Room Ventilation Systems

Product Details

Place of Origin: China Foshan

Brand Name: Available for ODM

Certification: CE

Model Number: BPT10-12

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Contact Us

Packaging Details: Carton packaging，1 units per carton

Delivery Time: 3-8 work days

Payment Terms: T/T

Supply Ability: 5000

Get Best Price

Product Details

Product Description
Highlight:

ventilation inline duct fans

,

ventilation inline extractor fan

,

220v inline duct fans

Function:
Ceiling Air Flow Ventilator​ System
Mounting:
Ceiling
Voltage:
220V
Power:
24-100W
Air Volume:
120-600 M³/h
Core Components:
Motor, Engine
Noise:
32-58 DB
Static Pressure(Pa):
80-220 Pa
Motor:
100% Copper Coil
Duct Size:
100 Mm / 150 Mm
Apllications:
Hotel / School / Residence / Office / Bathroom
Function:
Ceiling Air Flow Ventilator​ System
Mounting:
Ceiling
Voltage:
220V
Power:
24-100W
Air Volume:
120-600 M³/h
Core Components:
Motor, Engine
Noise:
32-58 DB
Static Pressure(Pa):
80-220 Pa
Motor:
100% Copper Coil
Duct Size:
100 Mm / 150 Mm
Apllications:
Hotel / School / Residence / Office / Bathroom
Fresh Air Extraction Fans Single Room Ventilation Systems

Technical Specifications

Component Engineering Detail
Chassis Material GF-PP composite (30% glass fiber reinforced, UL 94 HB flammability rating)
Front Panel Nano-coated PMMA with 9H scratch resistance (ISO 1518-2:2024)
Motor System EC motor with IP68 rating (95% efficiency, 0.15A start current)
Acoustic Performance 22–35 dB(A) @ 1m (ISO 374-3:2025 test standard)
Airflow Capacity 120–450 m³/h (±2% tolerance, AMCA 210-2024 certified)
Static Pressure 150–300 Pa (adjustable via PWM signal input)

Core Innovation Highlights

  1. Aerodynamic Flow Architecture
    • Helical duct geometry reduces turbulence losses by 40% (CFD-validated design)
    • Integrated backdraft damper with silicone sealing achieves 99.8% closure efficiency
  2. Corrosion-Resistant Construction
    • Electrostatic powder-coated steel housing (ASTM B117 salt spray tested for 1,000 hrs)
    • Zinc-nickel plated fasteners (ISO 4042:2025 compliant)
  3. Intelligent Noise Control
    • Frequency-modulated motor reduces tonal peaks <18 dB (1/3 octave band analysis)
    • Vibration-damped mounting system isolates structural noise transmission
  4. Modular Service Design
    • Tool-free front panel removal with magnetic retention system (5,000-cycle durability)
    • QR-coded components enable instant maintenance history tracking
  5. Installation Precision
    • Laser-etched alignment markers (≤0.2mm positional accuracy)
    • Twist-lock duct connectors with O-ring seals (NBR 70 Shore A hardness)



General assembly Drawing

Fresh Air Extraction Fans Single Room Ventilation Systems 0



Product Installation Method

Phase 1: Structural Preparation

  • Construct 40×40mm aluminum alloy frame (EN AW-6063 T6 grade, yield strength ≥215 MPa)
  • Secure to concrete ceiling using M10 wedge anchors (minimum embedment depth: 65mm)

Fresh Air Extraction Fans Single Room Ventilation Systems 1

Phase 2: Unit Mounting

  • Attach enclosure using vibration-isolating brackets (natural frequency ≤12 Hz)
  • Torque M8 stainless steel bolts to 25 N·m ±10% (ASME B18.2.1-2024 specification)

Fresh Air Extraction Fans Single Room Ventilation Systems 2

Phase 3: Duct Integration

  • Align helical duct connector using laser level (≤0.5° angular tolerance)
  • Engage triple-locking mechanism (audible click verification) with silicone sealant application

Fresh Air Extraction Fans Single Room Ventilation Systems 3

Performance Validation

  • Airflow Test: Hot-wire anemometer calibration (accuracy: ±1.2% FS)
  • Leakage Check: 50 Pa pressure differential test per AMCA 500-L:2023
  • Noise Certification: Reverberation room testing per ISO 3741:2025



Product Performance Curve

Fresh Air Extraction Fans Single Room Ventilation Systems 4



Product Performance Specifications

Fresh Air Extraction Fans Single Room Ventilation Systems 5

Model Num

 A B C D E F

Cutout Dimensions

BPT10-12

 280 280 277 155 230 14 230*240
BPT10-15 280 280 277 155 230 14 230*240
BPT10-21 280 280 277 155 230 14 230*240
BPT15-27 380 380 341 224 306 14 306*306
BPT15-33 380 380 341 224 306 14 306*306
BPT15-40 380 380 341 224 306 14 306*306
BPT15-60 380 380 341 224 306 14 306*306
