Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: BPT10-12
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Function: |
Ventilaion |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
Warranty: |
3 Year |
Material: |
Galvanized Steel |
Customized Support: |
OEM |
Color: |
White |
Type: |
Duct Fan |
Application: |
Industrial Ventilation |
Style: |
Modern |
Product Type: |
Exhaust Fan |
Function: |
Ventilaion |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
Warranty: |
3 Year |
Material: |
Galvanized Steel |
Customized Support: |
OEM |
Color: |
White |
Type: |
Duct Fan |
Application: |
Industrial Ventilation |
Style: |
Modern |
Product Type: |
Exhaust Fan |

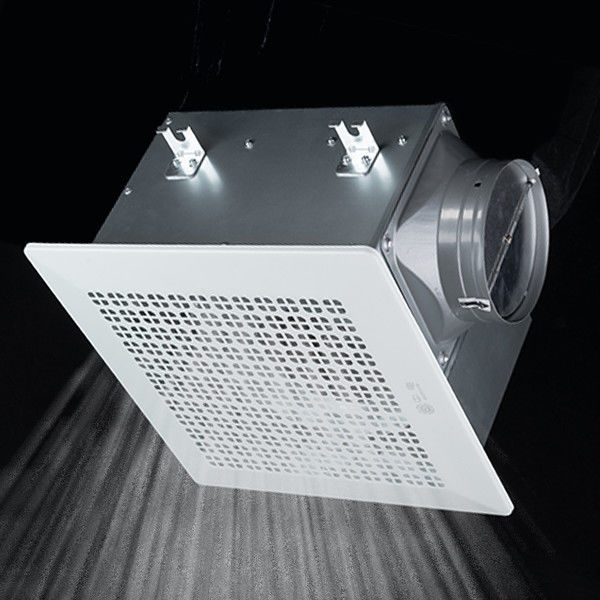

Extraction fans efficiently remove humid air from bathrooms, laundries, washrooms, and toilets. Available in various capacities, they cater to different needs, from small toilet areas to large indoor pool spaces.
These fans come in multiple styles, including exhaust ventilation fans and in-line ventilation fans. Regardless of the style, their primary function is consistent: to extract moisture from the room and direct it outside through ducting.
1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.
2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.
3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.
Product Performance Specifications
|
Model Num |
A | B | C | D | E | F |
Cutout Dimensions |
|
BPT10-12 |
280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-15 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-21 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT15-27 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-33 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-40 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-60 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
