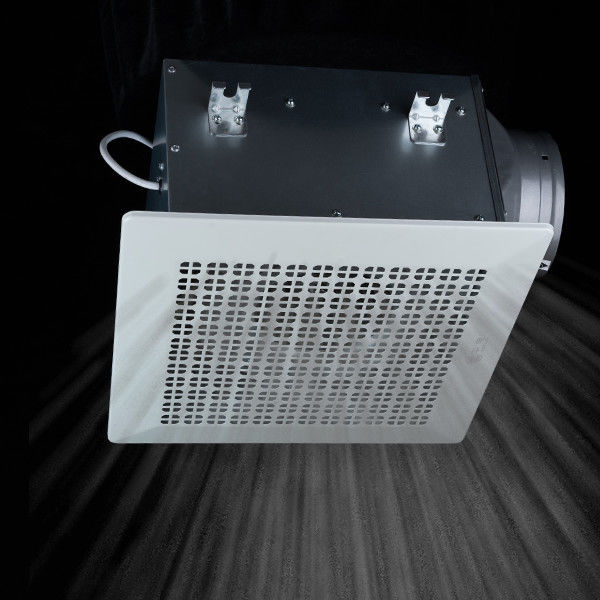

Fresh Air Extraction Fans Single Room Ventilation Systems

Name: Fresh Air Extraction Fans Single Room Ventilation Systems
Brand: Guangdong Zhongdian Jiajin Environmental Technology Co., Ltd.
SKU: BPT10-12
Availability: InStock

Product Details

Place of Origin: China Foshan

Brand Name: Available for ODM

Certification: CE

Model Number: BPT10-12

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Contact Us

Packaging Details: Carton packaging，1 units per carton

Delivery Time: 3-8 work days

Payment Terms: T/T

Supply Ability: 5000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Fresh Air Extraction Fans, Single Room Ventilation Fans


Function:	Ceiling Air Flow Ventilator System	Mounting:	Ceiling
Voltage:	220V	Power:	24-100W
Air Volume:	120-600 M³/h	Core Components:	Motor, Engine
Noise:	32-58 DB	Static Pressure(Pa):	80-220 Pa
Motor:	100% Copper Coil	Duct Size:	100 Mm / 150 Mm
Apllications:	Hotel / School / Residence / Office / Bathroom

Function:	Ceiling Air Flow Ventilator System
Mounting:	Ceiling
Voltage:	220V
Power:	24-100W
Air Volume:	120-600 M³/h
Core Components:	Motor, Engine
Noise:	32-58 DB
Static Pressure(Pa):	80-220 Pa
Motor:	100% Copper Coil
Duct Size:	100 Mm / 150 Mm
Apllications:	Hotel / School / Residence / Office / Bathroom

Fresh Air Extraction Fans Single Room Ventilation Systems

Product Overview

Ceiling cassette exhaust fans have compact chassis made from high strength plastic and its decorative high-gloss front panel is very durable and warp-resistant. The fans are equipped with a very efficient motor and a unique spiral ducting design for easy air inflow resulting to minimal air flow noise. The fans are also provided with a back flow damper to prevent the backflow of outside air into the room.

FEATURES & ADVANTAGES

Premium Ventilation Fan, Enhanced Durability and Performance

Painted Metal Grille: Ensures maximum durability and longevity.
Corrosion-Resistant Housing: Painted metal housing provides exceptional resistance to corrosion.
High-Quality Motor: Engineered for the quietest and most powerful performance.
Low dB Levels: Offers environmental comfort with minimal noise.
High Static Pressure: Perfect for long duct runs, ensuring efficient airflow.

General assembly Drawing

Fresh Air Extraction Fans Single Room Ventilation Systems 0

Product Installation Method

1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.

Fresh Air Extraction Fans Single Room Ventilation Systems 1

2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.

Fresh Air Extraction Fans Single Room Ventilation Systems 2

3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.

Fresh Air Extraction Fans Single Room Ventilation Systems 3

Product Performance Curve

Fresh Air Extraction Fans Single Room Ventilation Systems 4

Product Performance Specifications

Fresh Air Extraction Fans Single Room Ventilation Systems 5

Model Num	A	B	C	D	E	F	Cutout Dimensions
BPT10-12	280	280	277	155	230	14	230*240
BPT10-15	280	280	277	155	230	14	230*240
BPT10-21	280	280	277	155	230	14	230*240
BPT15-27	380	380	341	224	306	14	306*306
BPT15-33	380	380	341	224	306	14	306*306
BPT15-40	380	380	341	224	306	14	306*306
BPT15-60	380	380	341	224	306	14	306*306
