Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: BPT10-12
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Function: |
Ceiling Air Flow Ventilator System |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
Function: |
Ceiling Air Flow Ventilator System |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |

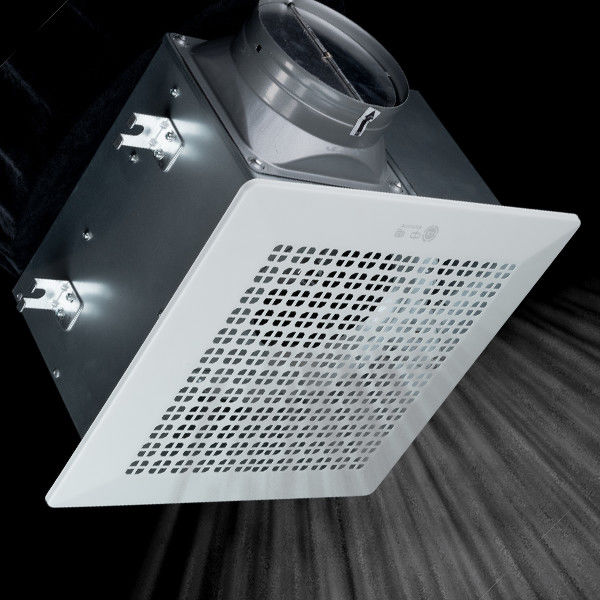

Premium Ventilation fan, painted metal grille for maximum durability. Painted metal housing for great resistance to corrosion. High quality motor and engineered blower wheel for quietest and most powerful performance. Lowest dB levels for environmental comfort. Highest static pressure performance for long duct runs.
Ceiling cassette exhaust fans provide a convenient solution to the exhaust needs of every home, kitchen, bedroom, toilets, etc. It effectively adjusts the indoor quality of the air by controlling the humidity, dirt, odor or smoke within a space. These are widely used in every home, office, super markets, restaurant, hotel, cinema, hospital and other public places.
1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.
2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.
3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.
Product Performance Specifications
|
Model Num |
A | B | C | D | E | F |
Cutout Dimensions |
|
BPT10-12 |
280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-15 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-21 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT15-27 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-33 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-40 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-60 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
