Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DJT10-20
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，6 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Electric Fan Design: |
Exhaust Fan |
Power Source: |
Ac |
Style: |
Modern |
Room Type: |
Bathroom |
Mounting Type: |
Duct Mount |
Material: |
Plastic |
Number Of Speeds: |
2 |
Product Dimensions: |
11.8"D X 7.2"W X 3.9"H |
Electric Fan Design: |
Exhaust Fan |
Power Source: |
Ac |
Style: |
Modern |
Room Type: |
Bathroom |
Mounting Type: |
Duct Mount |
Material: |
Plastic |
Number Of Speeds: |
2 |
Product Dimensions: |
11.8"D X 7.2"W X 3.9"H |
Product Applications
Energy-Efficient Ventilation

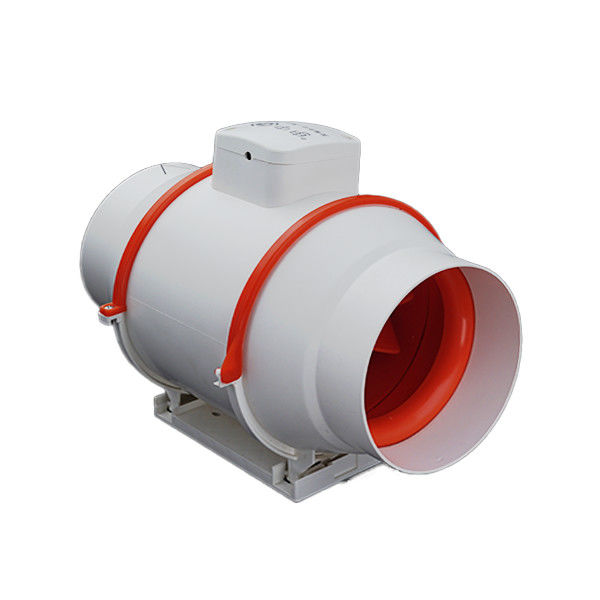

This powerful inline duct fan operates at a speed of 1400 RPM, generating an air flow of 200 CFM with a maximum power consumption of only 30W. The AC motor and low-noise design ensure effective air circulation, quickly moving a vast amount of air to exhaust odors.
Application Scenarios
The DJT10-20 booster duct fan is designed to quietly ventilate grow rooms, bathrooms, kitchens, workshops, basements, attics, and more, in order to boost airflow in HVAC systems.
Easy to Install
The air exhaust fan's blade and body are made of high-quality plastic, allowing for quick removal and easy maintenance.
Number of Speeds
The DJT10-20 duct fan features two speed settings, allowing you to adjust the airflow and noise as needed.
【Technical Parameters】
| Model Number | Power | Airflow | Static Pressure | Noise | Duct Diameter | Quantity per Carton | Weight |
| (w) | (m³/h) | (Pa) | (dB) | (inches) | (Units/Carton) | (kg) | |
| DJT10-20 | 30/26 | 200/170 | 183/130 | 30/25 | 3.94 | 6 | 1.8 |
| DJT15-54 | 48/40 | 540/384 | 330/280 | 40/35 | 5.91 | 6 | 2.2 |
| DJT20-90 | 76/60 | 900/820 | 380/310 | 50/45 | 7.87 | 6 | 2.7 |
| DJT25-170 | 173/152 | 1700/1200 | 550/480 | 56/50 | 9.84 | 1 | 18 |
| DJT31-230 | 350/260 | 2300/1900 | 650/500 | 60/55 | 12.2 | 1 | 20 |
DJT10-20High-Efficiency Inline Duct Fans 30W Ultra-Low Power and Low Noise Inline Duct Fans【Product Dimensions】
DJT10-20High-Efficiency Inline Duct Fans 30W Ultra-Low Power and Low Noise Inline Duct Fans【Dimensions】
Unit: Inches
| Model Number | A | B(Φ) | C | D | E | F | H | H1 |
| DJT10-20 | 11.81 | 3.94 | 3.94 | 8.43 | 2.44 | 2.36 | 7.17 | 3.74 |
| DJT15-54 | 11.54 | 5.91 | 4.72 | 9.33 | 2.83 | 2.76 | 8.31 | 4.33 |
| DJT20-90 | 11.97 | 7.87 | 5.51 | 10.16 | 3.07 | 3.35 | 9.25 | 4.88 |
| DJT25-170 | 14.45 | 9.84 | 12.48 | 8.19 | 4.72 | 3.74 | 14.37 | 7.72 |
| DJT31-230 | 17.72 | 12.4 | 14.17 | 10.04 | 4.72 | 3.74 | 16.14 | 8.46 |
