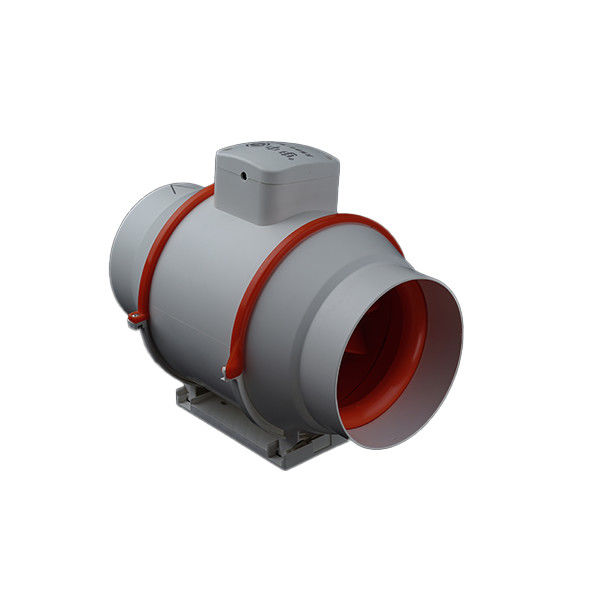

Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DJT25-170
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use |
Product Type: |
Duct Exhaust Fan |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Customized Support: |
OEM |
Blade Material: |
Plastic |
Voltage: |
220V |
Warranty: |
1 Year |
Product Name: |
Inline Fan |
Color: |
White |
Name: |
Inline Duct Fan |
Function: |
Ventilaion |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use |
Product Type: |
Duct Exhaust Fan |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Customized Support: |
OEM |
Blade Material: |
Plastic |
Voltage: |
220V |
Warranty: |
1 Year |
Product Name: |
Inline Fan |
Color: |
White |
Name: |
Inline Duct Fan |
Function: |
Ventilaion |
Product Utilization
The axial fan's impeller boasts a design that prioritizes ease of maintenance. Its streamlined structure simplifies disassembly and reassembly, expediting upkeep and minimizing operational disruptions. In instances requiring blade replacement or repair, the process is swift, thereby curtailing downtime and boosting productivity. Furthermore, the impeller's design harmoniously integrates with the motor, assuring peak performance of the entire unit.
The axial fan's interface is meticulously crafted for effortless integration with ventilation systems. Adhering to standardized connection procedures guarantees a secure fit, ensuring uninterrupted operation of the ventilation network. The connections are also meticulously sealed, significantly reducing post-installation air leakage concerns, further enhancing system efficiency.
Product Specifications
| Model number | Power | Airflow | Static Pressure | Noise Level | Duct Diameter | Quantity per Carton | Net Weight |
| (W) | (m5/h) | (Pa) | (dB) | (mm) | (Unit／Box) | (kg) | |
| DJT10-20 | 30/26 | 200/170 | 183/130 | 30/25 | 100 | 6 | 1.8 |
| DJT15-54 | 48/40 | 540/384 | 330/280 | 40/35 | 150 | 6 | 2.2 |
| DJT20-90 | 76/60 | 900/820 | 380/310 | 50/45 | 200 | 6 | 2.7 |
| DJT25-170 | 173/152 | 1700/1200 | 550/480 | 56/50 | 250 | 1 | 18 |
| DJT31-230 | 350/260 | 2300/1900 | 650/500 | 60/55 | 315 | 1 | 20 |
Product Dimensions Diagram
Product Size Specifications
| Model number | A | B(Φ) | C | D | E | F | H | H1 |
| dJT10-20 | 300 | 100 | 100 | 214 | 62 | 60 | 182 | 95 |
| DJT15-54 | 293 | 150 | 120 | 237 | 72 | 70 | 211 | 110 |
| DJT20-90 | 304 | 200 | 140 | 258 | 78 | 85 | 235 | 124 |
| DJT25-170 | 367 | 250 | 317 | 208 | 120 | 95 | 365 | 196 |
| DJT31-230 | 450 | 315 | 360 | 255 | 120 | 95 | 410 | 215 |
