Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: BPT10-12
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Function: |
Ceiling Air Flow Ventilator System |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
Function: |
Ceiling Air Flow Ventilator System |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |

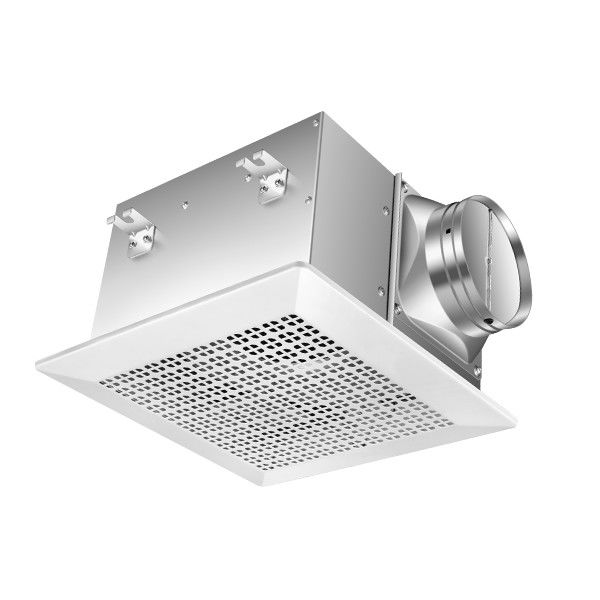

This wholesale positive pressure exhaust fan fresh air extraction ceiling mounted ventilation system is designed for large commercial and industrial environments. It can effectively discharge the dirty air in the room, while introducing fresh air to maintain the indoor air quality. Its efficient ventilation performance and durable design make it ideal for a variety of locations.
1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.
2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.
3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.
Product Performance Specifications
|
Model Num |
A | B | C | D | E | F |
Cutout Dimensions |
|
BPT10-12 |
280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-15 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-21 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT15-27 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-33 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-40 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-60 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
