Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: BPT10-12
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Type: |
Axial Flow Fan |
Applicable Industries: |
Hotels, Building Material Shops, Home Use, Retail, Construction Works |
Mounting: |
Ceiling Mounting |
Motor: |
Capacitor Copper Wire Motor |
Noise: |
MAX 45 DB |
Voltage (V): |
220V |
Air Flow: |
120-500 M³/h |
Type: |
Axial Flow Fan |
Applicable Industries: |
Hotels, Building Material Shops, Home Use, Retail, Construction Works |
Mounting: |
Ceiling Mounting |
Motor: |
Capacitor Copper Wire Motor |
Noise: |
MAX 45 DB |
Voltage (V): |
220V |
Air Flow: |
120-500 M³/h |

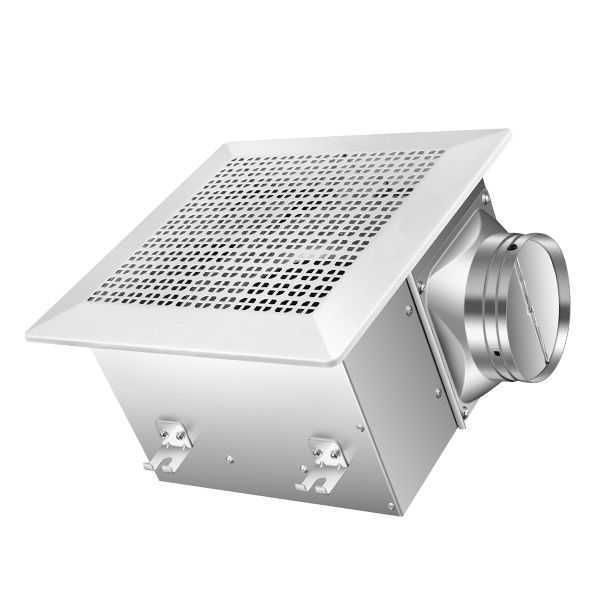

Ceiling Duct Ventilation Fan is a ceiling-mounted fan designed for modern home and commercial Spaces. Its unique passageway structure and excellent air circulation effect provide excellent silence performance, bringing unparalleled comfort to your living and working environment.
High efficiency and energy saving:
Advanced DC motor technology for lower power consumption and smoother operation.
Supports multi-speed wind speed adjustment to meet the ventilation requirements in different scenarios.
Mute design:
Specially optimized fan design and motor structure ensure almost no noise during operation.
Quality materials:
High quality metal, durable, rust and corrosion prevention.
Built-in overheat protection to ensure safe use.
Easy to install:
Complete with detailed installation instructions and required accessories for easy DIY or professional installation.
Safety guarantee:
Built-in overheat protection to ensure safe use.
1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.
2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.
3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.
Product Performance Specifications
|
Model Num |
A | B | C | D | E | F |
Cutout Dimensions |
|
BPT10-12 |
280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-15 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-21 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT15-27 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-33 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-40 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-60 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
