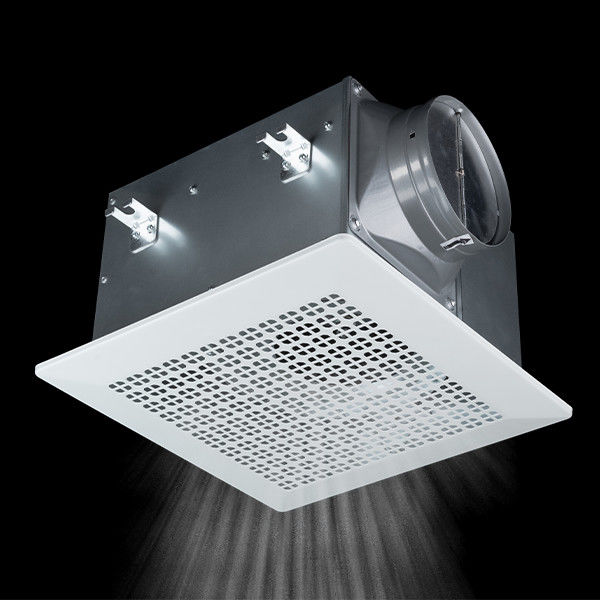

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom

Name: High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom
Brand: Guangdong Zhongdian Jiajin Environmental Technology Co., Ltd.
SKU: BPT10-12
Availability: InStock

Product Details

Place of Origin: China Foshan

Brand Name: Available for ODM

Certification: CE

Model Number: BPT10-12

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Contact Us

Packaging Details: Carton packaging，1 units per carton

Delivery Time: 3-8 work days

Payment Terms: T/T

Supply Ability: 5000

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Direct Drive Ceiling Exhaust Fan, High CFM Ceiling Exhaust Fan, Bathroom Ceiling Exhaust Fan


Function:	Ceiling Duct Air Flow	Mounting:	Ceiling
Voltage:	220V	Power:	24-100W
Air Volume:	120-600 M³/h	Core Components:	Motor, Engine
Noise:	32-58 DB	Static Pressure(Pa):	80-220 Pa
Motor:	100% Copper Coil	Duct Size:	100 Mm / 150 Mm
Apllications:	Hotel / School / Residence / Office / Bathroom	Usage:	Ventilation
Material:	Galvanized Steel	Type:	Duct Fan
Warranty:	3 Year	Power Source:	Electric
Motor Type:	Copper Winding Motor	Keyword:	Extractor Fan
Color:	White

Function:	Ceiling Duct Air Flow
Mounting:	Ceiling
Voltage:	220V
Power:	24-100W
Air Volume:	120-600 M³/h
Core Components:	Motor, Engine
Noise:	32-58 DB
Static Pressure(Pa):	80-220 Pa
Motor:	100% Copper Coil
Duct Size:	100 Mm / 150 Mm
Apllications:	Hotel / School / Residence / Office / Bathroom
Usage:	Ventilation
Material:	Galvanized Steel
Type:	Duct Fan
Warranty:	3 Year
Power Source:	Electric
Motor Type:	Copper Winding Motor
Keyword:	Extractor Fan
Color:	White

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom

Product Overview

Extraction fans effectively eliminate humid air from bathrooms, laundries, washrooms, and toilets. Available in a variety of capacities, they cater to diverse needs, from compact toilet areas to expansive indoor pool spaces.

These fans come in multiple styles, including exhaust ventilation fans and in-line ventilation fans. Regardless of the style, their primary function remains consistent: to extract moisture from the room and direct it outside through ducting.

FEATURES & ADVANTAGES

Elegant and streamlined grille design
Durable galvanized steel construction
Easy-to-follow installation process
Adjustable mounting brackets up to a 24” span
Integrated backdraft damper for enhanced safety

General assembly Drawing

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 0

Product Installation Method

1. Begin by building a sturdy rectangular frame, ensuring it is solidly anchored to the ceiling above.

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 1

2. Firmly affix the storage unit (or enclosure) to the pre-installed frame.

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 2

3. Carefully line up the ventilation duct connector with the arrow direction indicated and securely attach it using a twist-lock mechanism to the designated air outlet port on the cabinet, ensuring proper airflow connection.

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 3

Product Performance Curve

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 4

Product Performance Specifications

High CFM Direct Drive Ceiling Exhaust Fan Ventilation For Bathroom 5

Model Num	A	B	C	D	E	F	Cutout Dimensions
BPT10-12	280	280	277	155	230	14	230*240
BPT10-15	280	280	277	155	230	14	230*240
BPT10-21	280	280	277	155	230	14	230*240
BPT15-27	380	380	341	224	306	14	306*306
BPT15-33	380	380	341	224	306	14	306*306
BPT15-40	380	380	341	224	306	14	306*306
BPT15-60	380	380	341	224	306	14	306*306
