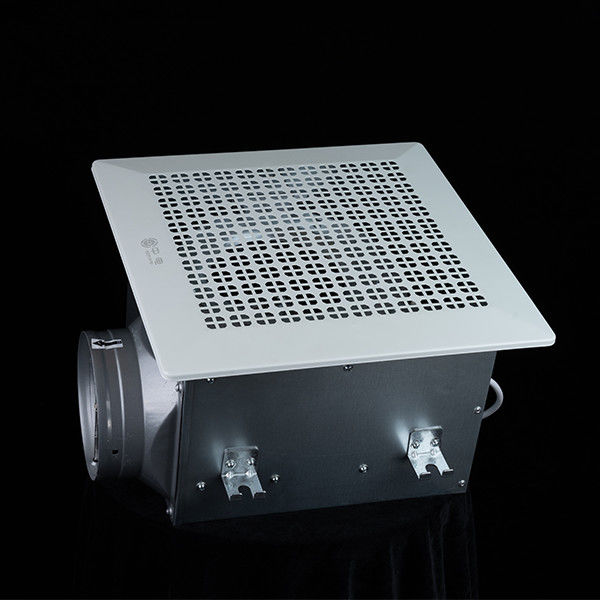

Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: BPT10-12
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Function: |
Air Flow Circulation |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
Function: |
Air Flow Circulation |
Mounting: |
Ceiling |
Voltage: |
220V |
Power: |
24-100W |
Air Volume: |
120-600 M³/h |
Core Components: |
Motor, Engine |
Noise: |
32-58 DB |
Static Pressure(Pa): |
80-220 Pa |
Motor: |
100% Copper Coil |
Duct Size: |
100 Mm / 150 Mm |
Apllications: |
Hotel / School / Residence / Office / Bathroom |
1, First make a square frame and fix it to the ceiling frame
2, Fix the cabinet (or box) to the frame
3,Align the air duct connector with the arrow direction and twist-lock it onto the air outlet of the cabinet.
Product Performance Specifications
|
Model Num |
A | B | C | D | E | F |
Cutout Dimensions |
|
BPT10-12 |
280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-15 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT10-21 | 280 | 280 | 277 | 155 | 230 | 14 | 230*240 |
| BPT15-27 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-33 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-40 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
| BPT15-60 | 380 | 380 | 341 | 224 | 306 | 14 | 306*306 |
