Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DJT25-170
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use |
Mounting: |
Duct Fan |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Customized Support: |
OEM |
Blade Material: |
Plastic |
Voltage: |
220V |
Warranty: |
1 Year |
Product Name: |
Inline Fan |
Color: |
White |
Name: |
Inline Duct Fan |
Function: |
Ventilaion |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use |
Mounting: |
Duct Fan |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Customized Support: |
OEM |
Blade Material: |
Plastic |
Voltage: |
220V |
Warranty: |
1 Year |
Product Name: |
Inline Fan |
Color: |
White |
Name: |
Inline Duct Fan |
Function: |
Ventilaion |

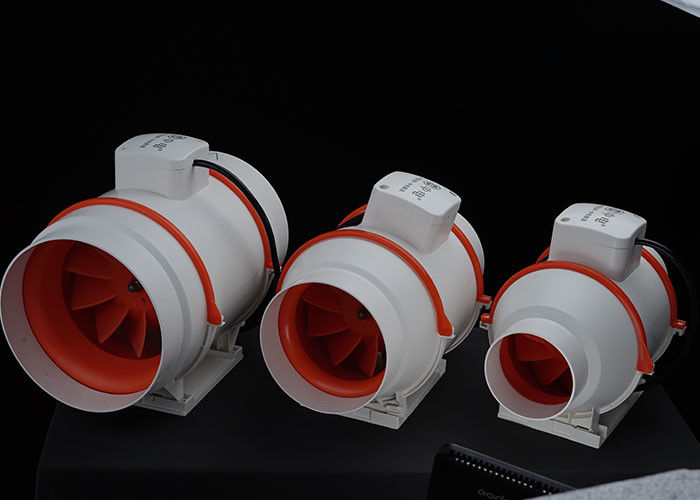

Product Applications
In industrial production, axial fans are indispensable. They effectively exhaust harmful gases and dust generated in industries such as chemicals and pharmaceuticals. This protects workers' health and extends the lifespan of production equipment. Their robust and durable nature allows them to adapt to various harsh industrial environments.
Product Impeller
The design of the axial fan impeller features excellent maintainability. Its simple structure allows for easy disassembly and installation, facilitating maintenance and servicing. When blade replacement or repairs are needed, this can be done quickly, reducing downtime and enhancing work efficiency. Additionally, the design considers compatibility with the motor, ensuring optimal overall performance of the fan.
Easy to Install
The axial fan's interface design is rational, allowing for smooth connections with ventilation ducts. Installers can achieve a tight connection by following standard connection methods, ensuring the ventilation system operates normally. Additionally, the sealing at the connection points is effective, minimizing potential air leakage issues after installation.
Product Specifications
| Model number | Power | Airflow | Static Pressure | Noise Level | Duct Diameter | Quantity per Carton | Net Weight |
| (W) | (m5/h) | (Pa) | (dB) | (mm) | (Unit／Box) | (kg) | |
| DJT10-20 | 30/26 | 200/170 | 183/130 | 30/25 | 100 | 6 | 1.8 |
| DJT15-54 | 48/40 | 540/384 | 330/280 | 40/35 | 150 | 6 | 2.2 |
| DJT20-90 | 76/60 | 900/820 | 380/310 | 50/45 | 200 | 6 | 2.7 |
| DJT25-170 | 173/152 | 1700/1200 | 550/480 | 56/50 | 250 | 1 | 18 |
| DJT31-230 | 350/260 | 2300/1900 | 650/500 | 60/55 | 315 | 1 | 20 |
Product Dimensions Diagram
Product Size Specifications
| Model number | A | B(Φ) | C | D | E | F | H | H1 |
| dJT10-20 | 300 | 100 | 100 | 214 | 62 | 60 | 182 | 95 |
| DJT15-54 | 293 | 150 | 120 | 237 | 72 | 70 | 211 | 110 |
| DJT20-90 | 304 | 200 | 140 | 258 | 78 | 85 | 235 | 124 |
| DJT25-170 | 367 | 250 | 317 | 208 | 120 | 95 | 365 | 196 |
| DJT31-230 | 450 | 315 | 360 | 255 | 120 | 95 | 410 | 215 |
