Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DKT-2.15B-W
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Air Conditioning Uni |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380 |
Customized Support: |
OEM, ODM, OBM |
Mounting: |
FREE STANDING |
Model Number: |
DKT-2.15B-W |
Warranty: |
1 Year |
Product Name: |
Ac Centrifugal Fan |
Application: |
Exhaust Ventilation |
Certification: |
CE |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Air Conditioning Uni |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380 |
Customized Support: |
OEM, ODM, OBM |
Mounting: |
FREE STANDING |
Model Number: |
DKT-2.15B-W |
Warranty: |
1 Year |
Product Name: |
Ac Centrifugal Fan |
Application: |
Exhaust Ventilation |
Certification: |
CE |
Product Applications:

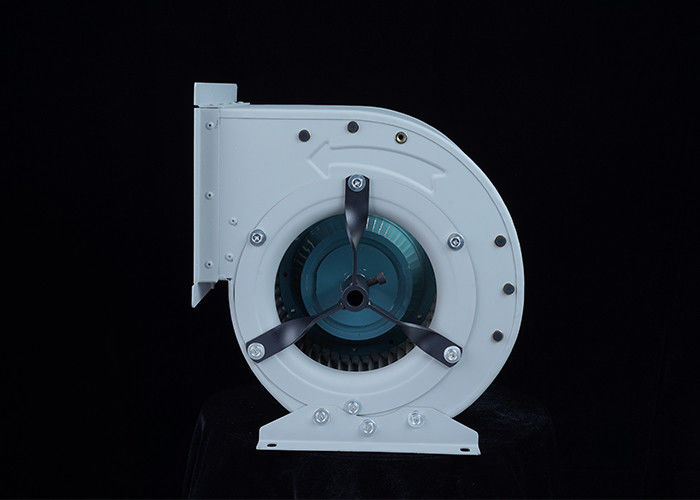

Double Inlet Centrifugal Fans are suitable for various-sized air handling units, fan coil units, central air conditioning systems, and purification equipment in industrial enterprises, hotels, and large shopping malls. They are characterized by their versatility, high efficiency, low noise, and large airflow. These fans convey non-flammable and non-corrosive gases within a temperature range of -20°C to 60°C, with dust and other solid content ≤ 100 mg/m³.
Fan Configuration: Features an external rotor motor, adjustable air discharge angle, available in single-phase or three-phase options, and compatible with air conditioning units.
Multi-Wing Impeller: Constructed from thin plates with circular arcs riveted to the wheel cover, offering excellent aerodynamic performance.
Metal Housing: Made from high-quality cold-rolled steel plates that are mechanically interlocked and coated with a protective finish, offering resistance to corrosion, rust, and moisture.
Air Inlet: Made from high-quality steel plates, stamped into shape, and installed on both sides of the fan. The cross-section parallel to the axis is curved.
External Rotor Motor: Equipped with a ball-bearing pure copper motor, featuring an IP54 protection rating. It is highly efficient, energy-saving, and has a longer service life.
Product Performance Specifications
| Model | DKT-2.15B-W | Fan Type | Centrifugal Fan | |||||||
| Rated Voltage | 380V | Frequency | 50Hz | |||||||
| Rated Power | 0.32KW | Noise Level | ||||||||
| RPM ( Revolutions Per Minute) | 1400r/ min | Rated Current | 1.2A | |||||||
| No | Item | Units | A | B | C | D | E | F | G | H |
| 1 | Outlet Static Pressure | Pa | 0.000 | 49.125 | 98.313 | 149.188 | 197.375 | 235.938 | 246.750 | 290.063 |
| 2 | Dynamic Pressure | pa | 256.154 | 226.969 | 195.699 | 163.276 | 130.600 | 101.166 | 91.755 | 25.194 |
| 3 | Total Pressure | pa | 256.154 | 276.094 | 294.012 | 312.464 | 327.976 | 337.103 | 338.505 | 315.257 |
| 4 | Airflow/ Air Volume | m3/h | 2950.854 | 2777.814 | 2579.376 | 2356.036 | 2107.246 | 1854.639 | 1766.365 | 925.667 |
Product Dimensions
