Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DKT-2.15A-W
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Building Material Shops, Printing Shops, Farms, Construction Works , Restaurant, Advertising Company, Machinery Repair Shops, Food & Beverage Shops, Food Shop, Retail, Energy & Mining, Manufacturing Plant, Food & Beverage Factory, Hotels |
Electric Current Type: |
AC |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380 |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Carbon Steel |
Mounting: |
FREE STANDING |
Warranty: |
1 Year |
Core Components: |
Motor |
Applicable Industries: |
Building Material Shops, Printing Shops, Farms, Construction Works , Restaurant, Advertising Company, Machinery Repair Shops, Food & Beverage Shops, Food Shop, Retail, Energy & Mining, Manufacturing Plant, Food & Beverage Factory, Hotels |
Electric Current Type: |
AC |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380 |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Carbon Steel |
Mounting: |
FREE STANDING |
Warranty: |
1 Year |
Core Components: |
Motor |
Product Applications:

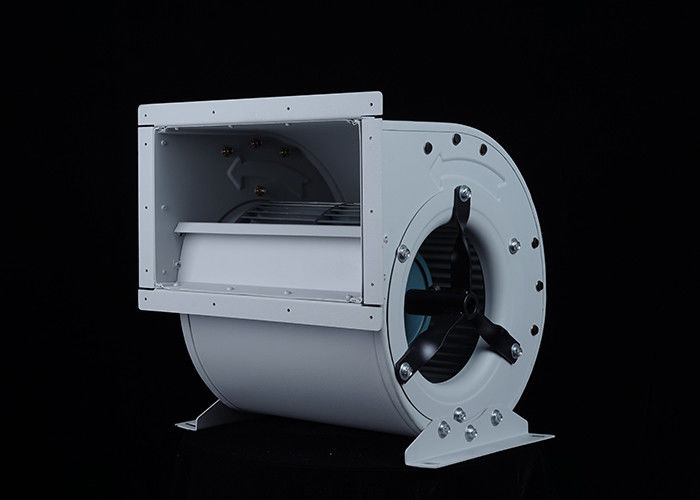

The Double Inlet Centrifugal Fans forward-curved centrifugal fan is extensively utilized in various air conditioning units, air purification systems, heating and cooling fans, as well as in industrial facilities and public spaces for indoor ventilation and air exchange. It is suitable for both air intake and exhaust applications. The intake is integrated into the side of the fan with a curved cross-section parallel to the axial direction, facilitating smooth airflow into the impeller with minimal losses.
The frame is constructed from seamless angle steel profiles, ensuring robust rigidity. It features a spray-coated surface that is both visually appealing and durable. Mounting holes are provided around the frame, allowing for flexible air discharge at 0°, 90°, 180°, or 270° angles, which simplifies installation. The fan's design is compact yet sturdy, lightweight, and occupies minimal space. It also features easy-to-remove parts for convenient maintenance. Additionally, the pulley can be adjusted horizontally, offering flexibility in installation without directional constraints.
Choose Our Six Key Advantages
Fan Scroll Case: Features professional equipment interlocking and edge-wrapping design, making it sturdy and durable. It boasts an attractive appearance with a solid, simple, and elegant body.
Impeller: Features a multi-wing design based on aerodynamic principles, achieving high airflow and high-pressure air delivery.
Motor: Pure copper motor with IP54 protection rating, providing more powerful performance, faster impeller speeds, and stronger airflow.
Product Performance Specifications
| Model | DKT-215A-F | Fan Type | Centrifugal Fan | |||||||
| Rated Voltage | 380V | Frequency | 50Hz | |||||||
| Rated Power | 0.25KW | Noise Level | ||||||||
| RPM (Revolutions Per Minute) | 1400r/min | Rated Current | 0.78A | |||||||
| No | Item | Units | A | B | C | D | E | F | G | H |
| 1 | Outlet Static Pressure | Pa | 0.000 | 48.938 | 99.250 | 149.688 | 199.000 | 252.125 | 302.188 | 320.000 |
| 2 | Dynamic Pressure | pa | 240.226 | 213.022 | 186.043 | 155.072 | 125.967 | 90.101 | 20.648 | 9.048 |
| 3 | Total Pressure | pa | 240.226 | 261.959 | 285.293 | 304.759 | 324.967 | 342.226 | 322.836 | 329.048 |
| 4 | Airflow / Air Volume | m3/h | 2895.633 | 2726.890 | 2548.508 | 2326.855 | 2097.230 | 1773.992 | 849.464 | 562.458 |
Curve Chart:
External Dimensions:
Unit: mm
