Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DT18-61
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
220/380V |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Cast Iron |
Mounting: |
Duct Fan |
Warranty: |
3 Year |
Fan Type: |
Centrifugal |
Cover Material: |
Steel With Powder Coated |
Installation: |
Ceiling Mounting With Ducting |
Air Volume: |
4800-25000m3/h |
Applicable Industries: |
Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
220/380V |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Cast Iron |
Mounting: |
Duct Fan |
Warranty: |
3 Year |
Fan Type: |
Centrifugal |
Cover Material: |
Steel With Powder Coated |
Installation: |
Ceiling Mounting With Ducting |
Air Volume: |
4800-25000m3/h |

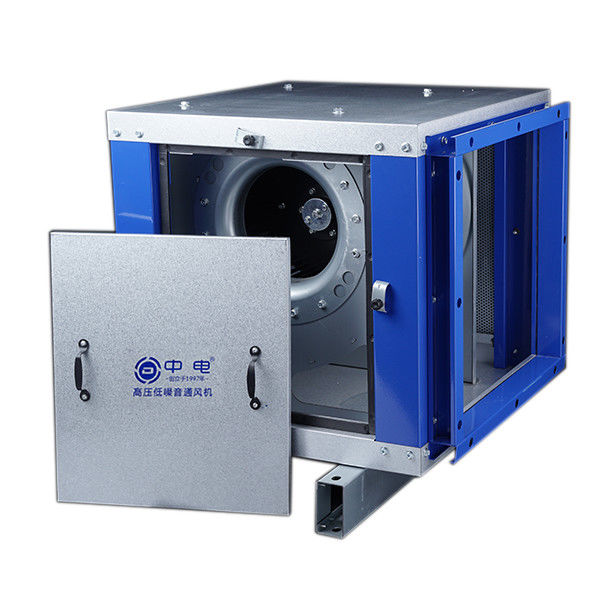

Introducing our high-efficiency commercial HVAC duct ventilation system, featuring a state-of-the-art centrifugal fan enclosed within a durable cabinet design. This advanced ventilation solution is meticulously engineered to meet the demanding needs of commercial environments, ensuring optimal air flow and energy efficiency.
Features
Premium Quality Components
Exceptional Performance
Robust Construction
User-Friendly Design
Comprehensive Range
Our high-efficiency commercial HVAC duct ventilation system stands out due to its exceptional performance, durability, and ease of use. Whether you are looking to upgrade your current ventilation system or install a new one, our centrifugal fan in cabinet design offers unparalleled benefits that cater to the specific needs of commercial environments.
Product Performance Specifications
| Model number | Voltage | Ffrequency | Rotating speed | Air volume | Voltage | Noise |
Power | Weight |
| (V) | ( Hz) | (r/ min) | (m³/h) | ( Pa) | (dB) | (W) | ( kg) | |
| DT11-36 | 220/380 | 50 | 1450 | 3600 | 562 | 57 | 1.1 | 49 |
| DT13-48 | 220/380 | 50 | 1450 | 4800 | 623 | 63 | 1.5 | 58 |
| DT18-61 | 220/380 | 50 | 1450 | 6100 | 673 | 68 | 2.2 | 70 |
| DT25-81 | 220/380 | 50 | 1450 | 8100 | 781 | 69 | 3 | 79 |
| DT32-100 | 220/380 | 50 | 1450 | 10000 | 810 | 75 | 3.8 | 84 |
| DT42-120 | 380 | 50 | 1450 | 12000 | 830 | 78 | 5 | 100 |
Product Dimensions
Product Dimensions and Specifications
Unit: mm
| Model number | A | B(Length) | C(Height) | D(Width) | Air Inlet (Inner Diameter) | Air Outlet (Inner Diameter) | Flange Thickness | ||
| E(Length) | H(Height) | Ⅰ(Length) | K(Length) | ||||||
| DT11-36 | 560 | 660 | 613 | 750 | 467 | 428 | 250 | 305 | 30×30 |
| DT13-48 | 570 | 668 | 650 | 780 | 497 | 460 | 210 | 335 | 30×30 |
| DT18-61 | 620 | 718 | 705 | 860 | 580 | 515 | 235 | 355 | 30×30 |
| DT25-81 | 650 | 748 | 740 | 910 | 630 | 550 | 250 | 380 | 30×30 |
| DT32-100 | 650 | 748 | 740 | 910 | 630 | 550 | 250 | 380 | 30×30 |
| DT42-120 | 725 | 823 | 815 | 962 | 679 | 625 | 280 | 355 | 30×30 |
| DT48-150 | 750 | 848 | 815 | 1000 | 717 | 625 | 380 | 405 | 30×30 |
| DT55-200 | 780 | 879 | 840 | 1030 | 747 | 650 | 380 | 415 | 30×30 |
