Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: FM3520
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Doorways |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Voltage: |
220V / 50hz |
Customized Support: |
OEM, ODM, OBM |
Mounting: |
Wall / Window Mount/ Door Mount |
Model Number: |
FM3520 |
Warranty: |
1 Year |
Core Components: |
Motor, Bearing, Engine |
Product Name: |

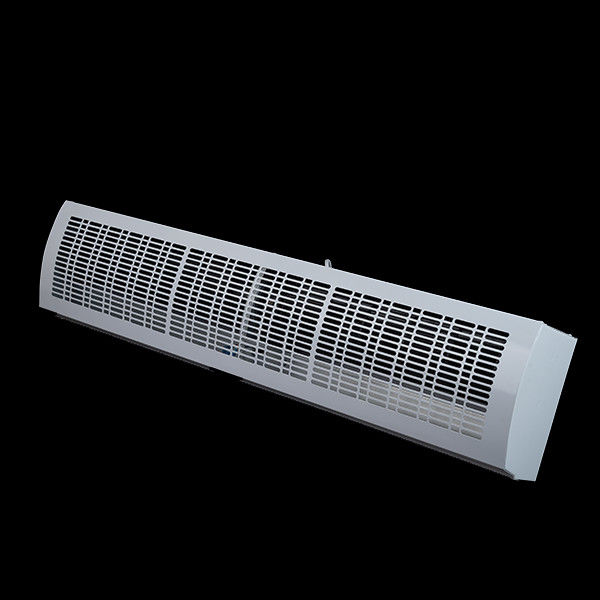

Air Curtain For Overhead Doors |
Dimension(L*W*H): |
2000 * 207 * 175 Mm |
Certification: |
CE |
Selling Units: |
Set |
Funtion: |
Low Noise, Energy Saving |
Air Flow: |
4500m³/h |
Color: |
White |
Applicable Industries: |
Doorways |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
China Foshan |
Voltage: |
220V / 50hz |
Customized Support: |
OEM, ODM, OBM |
Mounting: |
Wall / Window Mount/ Door Mount |
Model Number: |
FM3520 |
Warranty: |
1 Year |
Core Components: |
Motor, Bearing, Engine |
Product Name: |
Air Curtain For Overhead Doors |
Dimension(L*W*H): |
2000 * 207 * 175 Mm |
Certification: |
CE |
Selling Units: |
Set |
Funtion: |
Low Noise, Energy Saving |
Air Flow: |
4500m³/h |
Color: |
White |
Product applications
Air curtain is a powerful fan that creates an invisible high speed air barrier over the entrance to isolate the interior and exterior air environment and maintain temperature separation. Air curtains are a huge energy saving device as they help to prevent the conditioned air escape to exterior, blocking the entry of dust, smoke and flying insects.
100%Copper Wire Motor
Low Noise Multi-blade Impeler
The unequal pitch and multi-blade impeller desigh is characterized of lower noise and smaller vibration.
Product Dimensions Diagram
product specifications
| Model | Rated voltage (V) |
Rated frequency (Hz) |
Powe (W) |
Wind speed (m/s) |
Air volume (m3/h) |
Noise dB(A) |
Installation height (m) |
Dimensions (mm) |
Net weight (kg) |
| FM3509 | 220 | 50 | 135/115 | 11-13 | 2350 | 55 | 3.0-3.5 | 920X207X175 | 11.0 |
| FM3509Y | 220 | 50 | 135/115 | 11-13 | 2350 | 55 | 3.0-3.5 | 920X207X175 | 11.0 |
| FM3512 | 220 | 50 | 175/164 | 11-13 | 3050 | 57 | 3.0-3.5 | 1200X207X175 | 13.0 |
| FM3512Y | 220 | 50 | 175/164 | 11-13 | 3050 | 57 | 3.0-3.5 | 1200X207X175 | 13.0 |
| FM3515 | 220 | 50 | 232/210 | 11-13 | 3950 | 59 | 3.0-3.5 | 1500X207X175 | 16.0 |
| FM3515Y | 220 | 50 | 232/210 | 11-13 | 3950 | 59 | 3.0-3.5 | 1500X207X175 | 16.0 |
| FM3518 | 220 | 50 | 275/218 | 11-13 | 4500 | 62 | 3.0-3.5 | 1800X207X175 | 22.0 |
| FM3518Y | 220 | 50 | 275/218 | 11-13 | 4500 | 62 | 3.0-3.5 | 1800X207X175 | 22.0 |
| FM3520 | 220 | 50 | 293/240 | 11-13 | 4700 | 64 | 3.0-3.5 | 2000X207X175 | 24.0 |
| FM3520Y | 220 | 50 | 293/240 | 11-13 | 4700 | 64 | 3.0-3.5 | 2000X207X175 | 24.0 |
