Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DKT-2.8B W
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Factory |
Voltage: |
220V / 380V |
Blade Material: |
Stainless Steel |
Core Components: |
Motor、Blade |
Motor Wire: |
Copper |
Power: |
0.55kw |
Mounting: |
Free Standing 、Wall-Mounted |
Feature: |
High Efficiency |
Warranty: |
3 Year |
Applicable Industries: |
Factory |
Voltage: |
220V / 380V |
Blade Material: |
Stainless Steel |
Core Components: |
Motor、Blade |
Motor Wire: |
Copper |
Power: |
0.55kw |
Mounting: |
Free Standing 、Wall-Mounted |
Feature: |
High Efficiency |
Warranty: |
3 Year |
Product introduction

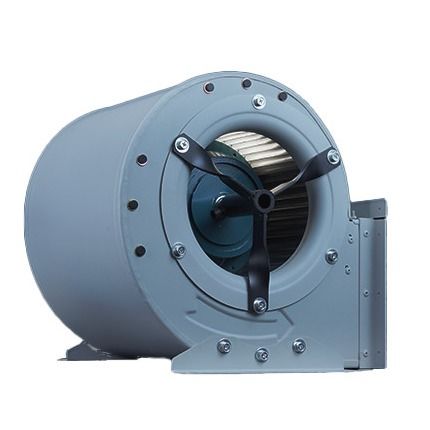

The DKT series centrifugal fans are designed for low noise and compactness, featuring a rated flow of 900-9200m³/h and a total pressure of 288-690Pa. With external rotor motors for direct drive, these fans offer high efficiency and substantial airflow, making them ideal for VAV air conditioners, ducted AC units, and various HVAC systems.
Constructionof Product
The DKT series fans are composed of a housing, wheel, baseplate, motor, shaft sleeve, and air outlet flange.
Product Performance Specifications
| Model | DKT-2.55B-W | Fan Type | Centrifugal Fan | |||||||
| Rated Voltage | 380V | Frequency | 50Hz | |||||||
| Rated Power | 0.8KW | Noise Level | ||||||||
| RPM ( Revolutions Per Minute) | 1400r/ min | Rated Current | 2.3A | |||||||
| No | ltem | Units | A | B | C | D | E | F | G | H |
| 1 | Outlet Static Pressure | Pa | 0.000 | 97.688 | 149.563 | 199.688 | 248.875 | 308.250 | 398.000 | 438.438 |
| 2 | Dynamic Pressure | pa | 336.474 | 276.375 | 247.876 | 215.492 | 185.885 | 149.118 | 101.832 | 58.293 |
| 3 | Total Pressure | pa | 336.474 | 374.062 | 397.439 | 415.180 | 434.760 | 457.368 | 499.832 | 496.731 |
| 4 | Airflow/ Air Volume | m3/h | 5015.319 | 4545.634 | 4304.899 | 4014.063 | 3728.318 | 3339.424 | 2760.057 | 2088.372 |
Data Curve
Dimensions diagram
