Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DT55-200
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Electric Current Type: |
AC |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380V |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Galvanized Steel |
Model Number: |
DT55-200 |
Warranty: |
1 Year |
Core Components: |
Motor, Other |
Function: |
Ventilaion |
Weight: |
122KG |

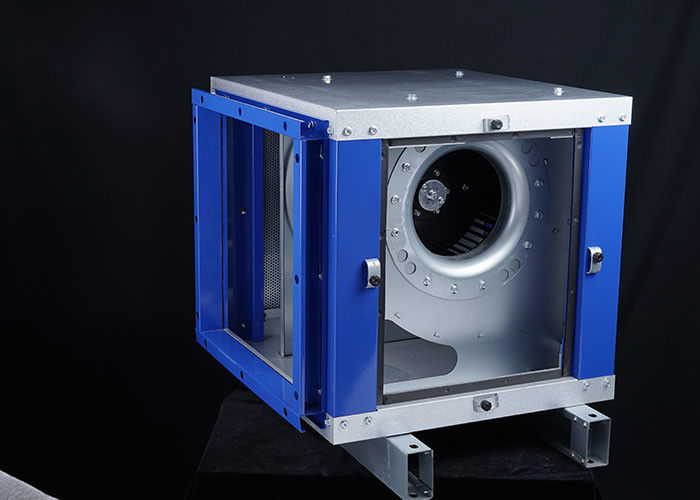

Product Name: |
Centrifugal Cabinet Fan |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Electric Current Type: |
AC |
After-sales Service Provided: |
Online Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
380V |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Galvanized Steel |
Model Number: |
DT55-200 |
Warranty: |
1 Year |
Core Components: |
Motor, Other |
Function: |
Ventilaion |
Weight: |
122KG |
Product Name: |
Centrifugal Cabinet Fan |
Product Applications
In industrial production, the applications of centrifugal cabinet fans are extensive. During the manufacturing process in various factories, harmful gases, dust, and significant amounts of residual heat are continuously generated. The centrifugal cabinet fan acts like a loyal guardian, efficiently removing these harmful substances to create a safe and comfortable working environment for employees. In the chemical industry, irritating and toxic gases are quickly expelled with the help of centrifugal cabinet fans, preventing harm to workers' health. In the metallurgy industry, large amounts of smoke and dust generated in high-temperature environments can also be effectively cleared. In the electronics industry, where air quality is critical, centrifugal cabinet fans ensure that the air in workshops remains clean, preventing dust and other impurities from affecting the quality of electronic products. In specialized industrial sectors such as pharmaceuticals and food processing, centrifugal cabinet fans are crucial. They strictly maintain the cleanliness of the production area's air, preventing any contaminants from entering and ensuring that products meet stringent hygiene standards.
In building ventilation, centrifugal cabinet fans are a core component of large building ventilation systems. In commercial buildings, office buildings, and hotels, where the density of people is high, air circulation is vital. Centrifugal cabinet fans continuously facilitate the exchange of indoor and outdoor air, ensuring that indoor spaces are always filled with fresh air. In poorly ventilated areas such as basements and parking garages, where exhaust gases tend to accumulate, centrifugal cabinet fans use their powerful airflow to quickly expel these gases, effectively preventing harmful gases from affecting human health. In fire smoke evacuation systems, centrifugal cabinet fans play a critical role. In the event of a fire, they can rapidly expel smoke, providing valuable time for personnel evacuation and creating favorable conditions for firefighting efforts, significantly enhancing the safety of buildings.
Product Motor
Product Impeller
The impeller's design is meticulously optimized, featuring exceptional aerodynamic shapes. Its unique curves and angles effectively guide airflow and reduce air resistance, enhancing the fan's efficiency. This high aerodynamic performance allows the centrifugal cabinet fan to generate greater airflow and pressure under the same power input, meeting the ventilation needs of various applications.
Product Specifications
High Efficiency Conversion: The motor efficiently converts electrical energy into mechanical energy, driving the impeller to produce strong airflow. This ensures the fan outputs adequate air volume and pressure while minimizing energy loss and reducing operational costs. Motors made with advanced technologies and high-quality materials offer even greater energy conversion efficiency, significantly lowering energy consumption compared to standard motors.
Strong Adaptability: The motor can be optimized and selected based on the specific operational requirements of the centrifugal cabinet fan. This ensures compatibility with other components of the fan system, enhancing overall operational efficiency.
| Model Numb | Voltage | Ffrequency | Rotating speed | Alr volume | Total Pressure | Sound Level | Power | Weight |
| (V) | (Hz) | (r/min) | (m2/h) | (Pa) | (dB) | (W) | (kg) | |
| DT11-36 | 220/380 | 50 | 1450 | 3600 | 562 | 57 | 1.1 | 49 |
| DT13-48 | 220/380 | 50 | 1450 | 4800 | 623 | 63 | 1.5 | 58 |
| DT18-61 | 220/380 | 50 | 1450 | 6100 | 673 | 68 | 2.2 | 70 |
| DT25-81 | 220/380 | 50 | 1450 | 8100 | 781 | 69 | 3 | 79 |
| DT32-100 | 220/380 | 50 | 1450 | 10000 | 810 | 75 | 3.8 | 84 |
| DT42-120 | 380 | 50 | 1450 | 12000 | 830 | 78 | 5 | 100 |
| DT48-150 | 380 | 50 | 1450 | 15000 | 860 | 78 | 5.5 | 101 |
| DT55-200 | 380 | 50 | 1450 | 20000 | 870 | 79 | 6 | 122 |
Product Dimensions Diagram
Product Dimensions Specifications
| Model Numb | A | B(Length) | C(Height) | D(Width) | Air Inlet (Internal Diameter) | Air Outlet (Internal Diameter) | Flange Thickness | ||
| E(Length) | H(Height) | l(Height) | K(Length) | ||||||
| DT11-36 | 560 | 660 | 613 | 750 | 467 | 428 | 250 | 305 | 30x30 |
| DT13-48 | 570 | 668 | 650 | 780 | 497 | 460 | 210 | 335 | 30x30 |
| DT18-61 | 620 | 718 | 705 | 860 | 580 | 515 | 235 | 355 | 30x30 |
| DT25-81 | 650 | 748 | 740 | 910 | 630 | 550 | 250 | 380 | 30x30 |
| DT32-100 | 650 | 748 | 740 | 910 | 630 | 550 | 250 | 380 | 30x30 |
| DT42-120 | 725 | 823 | 815 | 962 | 679 | 625 | 280 | 355 | 30x30 |
| DT48-150 | 750 | 848 | 815 | 1000 | 717 | 625 | 380 | 405 | 30x30 |
| DT55-200 | 780 | 879 | 840 | 1030 | 747 | 650 | 380 | 415 | 30x30 |
