Product Details
Place of Origin: China Foshan
Brand Name: Available for ODM
Certification: CE
Model Number: DKT-2.55B-W
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Carton packaging，1 units per carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 5000
Applicable Industries: |
HVAC |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
Customizable |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Carbon Steel |
Mounting: |
FREE STANDING |
Model Number: |
DKT-2.55B-W |
Warranty: |
3 Year |
Core Components: |
Motor, Bearing, Impeller, Flange, Shaft |
Fan Type: |
AC Centrifugal Fan |
Feature: |
High Efficiency |
Applicable Industries: |
HVAC |
Electric Current Type: |
AC |
After-sales Service Provided: |
Video Technical Support |
Place Of Origin: |
Guangdong, China |
Voltage: |
Customizable |
Customized Support: |
OEM, ODM, OBM |
Blade Material: |
Carbon Steel |
Mounting: |
FREE STANDING |
Model Number: |
DKT-2.55B-W |
Warranty: |
3 Year |
Core Components: |
Motor, Bearing, Impeller, Flange, Shaft |
Fan Type: |
AC Centrifugal Fan |
Feature: |
High Efficiency |
Product Applications

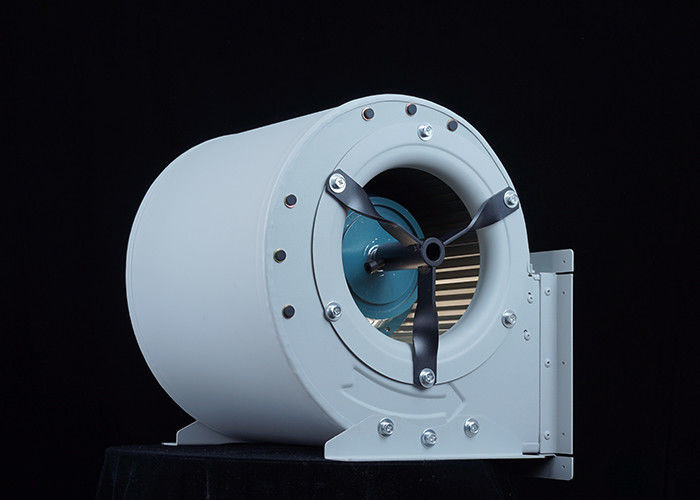

The DKT Cabinet Centrifugal Fan product can be used in various applications, including central air conditioning units, purification equipment, fresh air units, fan coil units, and air curtains. It features high efficiency, low noise, easy installation, and space-saving advantages, providing fresh and circulating air to maintain indoor air cleanliness and comfort. The working principle involves using an external rotor motor to directly drive the impeller, generating centrifugal force for air supply or exhaust.
In specific fields and equipment, external rotor dual-inlet air conditioning fans are also used, such as in factory ventilation and dust removal systems, ventilation systems in hotels and large buildings, and similar applications. Different models and specifications of external rotor dual-inlet air conditioning fans may vary in airflow, pressure, and power, allowing for selection based on specific usage scenarios and requirements.
Metal casing
The entire unit features a high-quality metal cold-rolled plate with a spray coating, providing excellent moisture resistance, corrosion resistance, rust resistance, and fire resistance. The installation is secure and convenient.
External rotor pure copper motor
External Rotor Pure Copper Motor: Equipped with pure copper coils for stronger power and includes overheat protection. It automatically stops in case of overload or abnormal operation to prevent motor damage. Features high-precision rotors crafted for smoother operation, with a moisture- and rust-resistant surface. High-precision bearings provide smooth performance, high load capacity, and longer lifespan with imported lubricating grease.
Centrifugal impeller
The impeller features a centrifugal multi-blade design for smooth operation. The blades have a specialized aerodynamic shape, resulting in high efficiency and low noise.
Installation: Multi-angle mounting options, including 0°, 90°, and 180°, allowing for flexible air blowing directions.
Product Performance Specifications
| Model | DKT-2.55B-W | Fan Type | Centrifugal Fan | |||||||
| Rated Voltage | 380V | Frequency | 50Hz | |||||||
| Rated Power | 0.8KW | Noise Level | ||||||||
| RPM ( Revolutions Per Minute) | 1400r/ min | Rated Current | 2.3A | |||||||
| No | ltem | Units | A | B | C | D | E | F | G | H |
| 1 | Outlet Static Pressure | Pa | 0.000 | 97.688 | 149.563 | 199.688 | 248.875 | 308.250 | 398.000 | 438.438 |
| 2 | Dynamic Pressure | pa | 336.474 | 276.375 | 247.876 | 215.492 | 185.885 | 149.118 | 101.832 | 58.293 |
| 3 | Total Pressure | pa | 336.474 | 374.062 | 397.439 | 415.180 | 434.760 | 457.368 | 499.832 | 496.731 |
| 4 | Airflow/ Air Volume | m3/h | 5015.319 | 4545.634 | 4304.899 | 4014.063 | 3728.318 | 3339.424 | 2760.057 | 2088.372 |
Curve chart
Dimensions diagram
